• MP : Microprocessor

.
• Most people know that a MP is lurking somewhere inside the machinery, but what a MP is, and what it does, remains a mystery.

.
• The book is intended to help remove the mystery.

.
• 80x86family <==> 8088, 8086, 80286, 80386, 80486, Pentium.

.
• Please think of "80x86" as a single machine as well, one processor having many abilities.

.
• Part I : Introduction

.
• Part II : S/W architecture

.
• Part III : Programming

.
• Part IV : H/W architecture ( Implement 8088 kit )

.
• Part V  : Advance topics

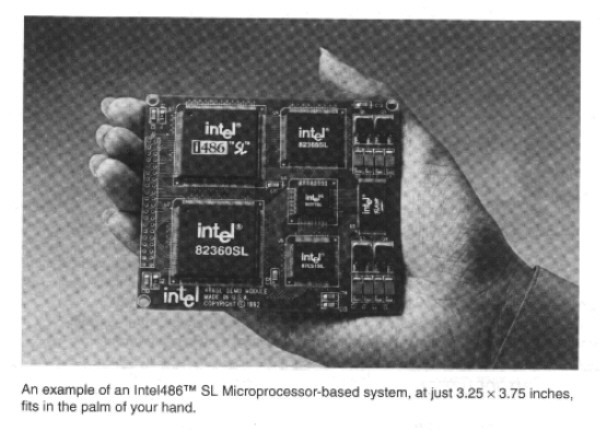

An example  ( P001 )

Objective :

• Block Diagram of MP-based System

.
• Processing cycle

.
• S/W initialize H/W

.
• History of MP

.
• Technique used to create S/W

.
• Error encountered



• MP(Microprocessors)¤§µo©ú²`²`¦a½ÄÀ»§Ú­Ìªº¥Í¬¡

• 1st Gen  : Vacuum Tube (ENIAC)

.
• 2nd Gen : Transister

.
• 3rd Gen : IC

.
• 4th Gen : VLSI

.
• 5th Gen : AI,  machine  can  think

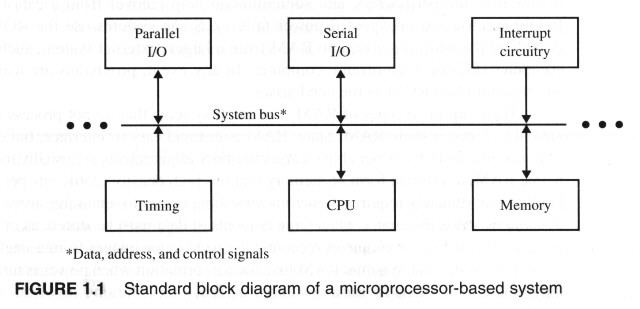

• Block Dia. of MP  (Fig1.1)

.

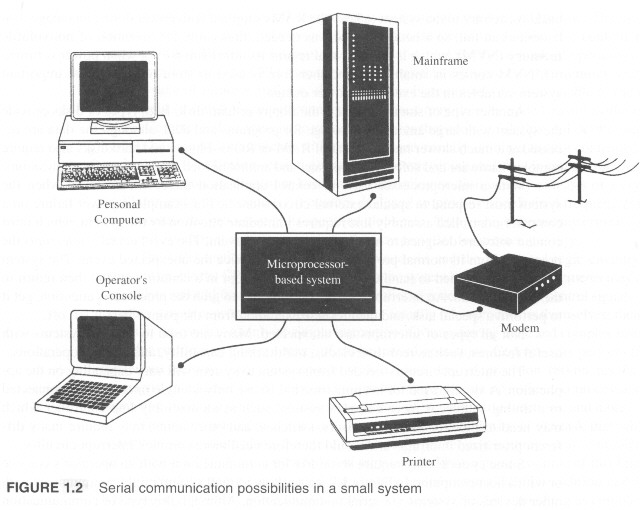

• Serial I/O Communication  (Fig1.2)

• Program Execute : Endless fetch, decode, & execute cycle

.
• Interrupt Processing

.
• Parallel Processing

.
• Microcontrollers (e.g.  8051 single chip)

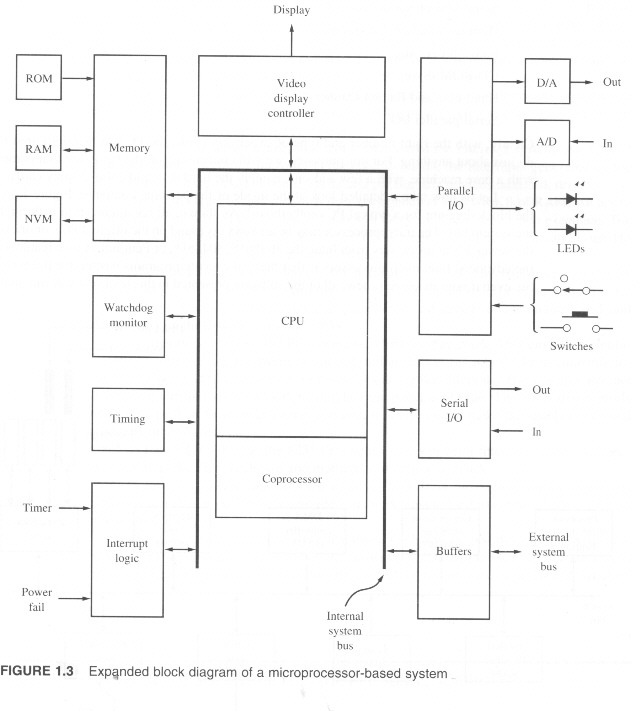

• Expanded Block Diagram. (Fig1.3)

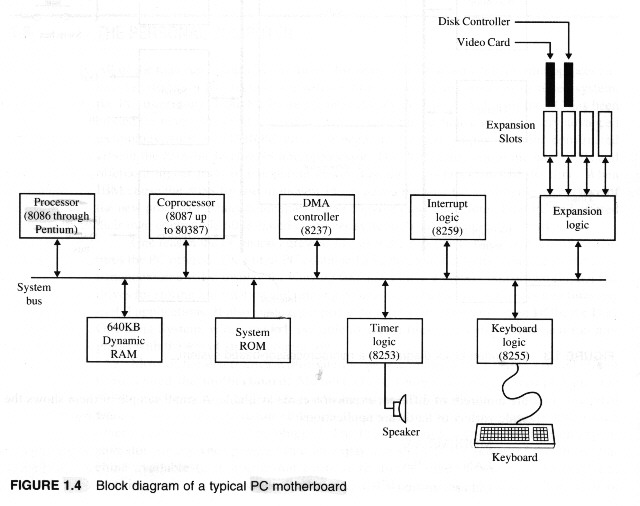

• PC Motherboard (Fig1.4)

• ASM  :  ADD     AX, BX

.
• m/c     :  0000   0001   1101   1000     (Binary)

.
• m/c     :     0        1          D        8        (Hex)

.
• e.g.NumOff.asm( P013 )

• Typographical Error

.
• Run-time Error

.
• Summary( page 16 )

.
• Study  Questions ( #1, #9, #15, #23 )

• Appendix G : Assembler Reference ( P727 ~ P730 )

.
• Appendix H : DEBUG and Codeview Reference (P731 ~ P746)

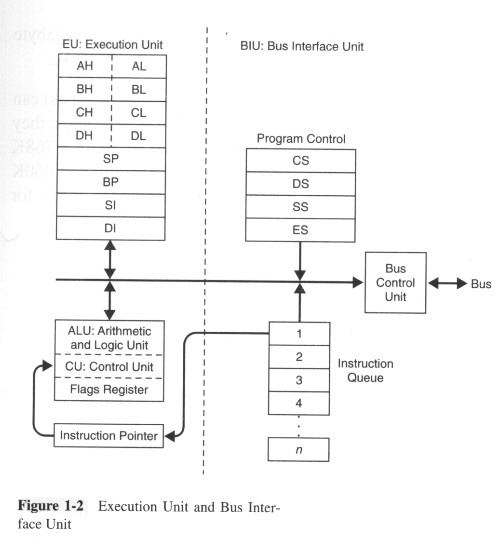

• Execution Unit & Bus Interface Unit ( P009 )

.

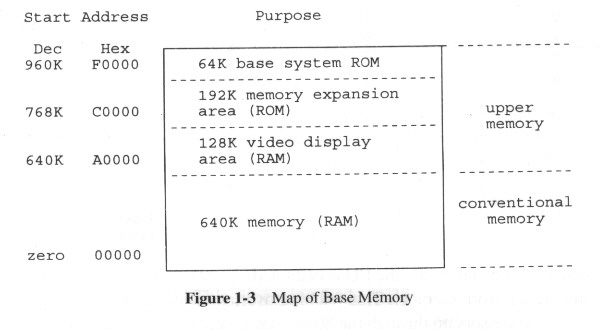

• Map of Base Memory ( P010 )

.

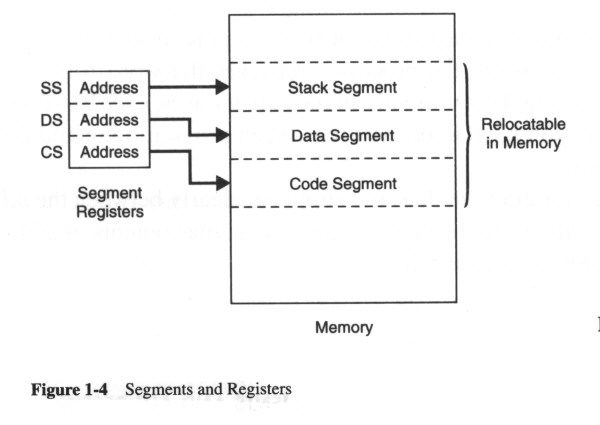

• Segment & Register ( P012 )

.

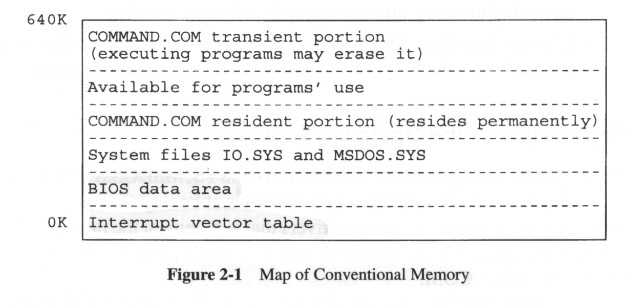

• Map of Conventional Memory ( P022 )

.

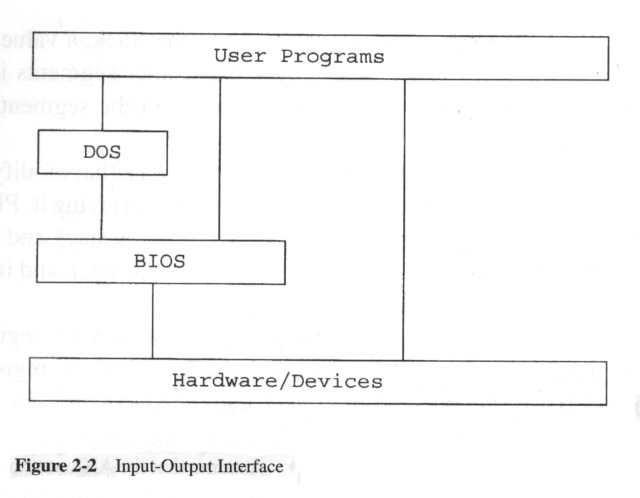

• Input/Output Interface ( P023 )

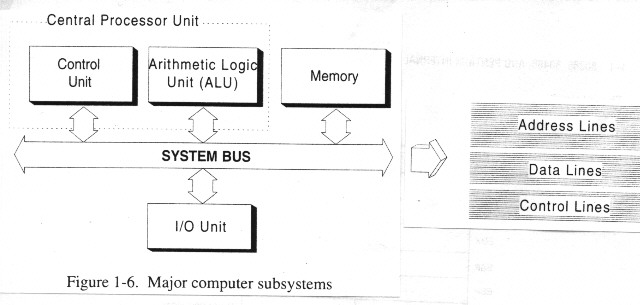

• Ref#01 Major Computer Subsystem  (LT001)

.

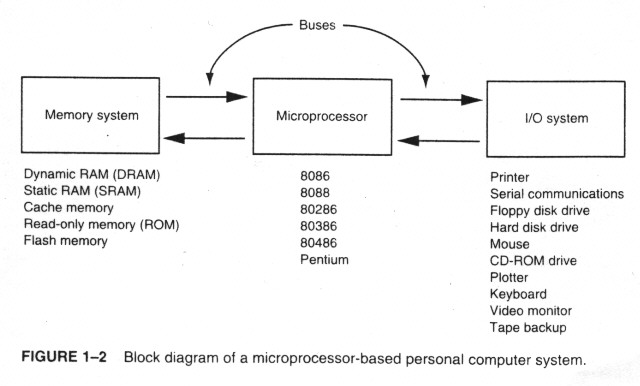

• Ref#02 MP-Based PC  (LT002)

.

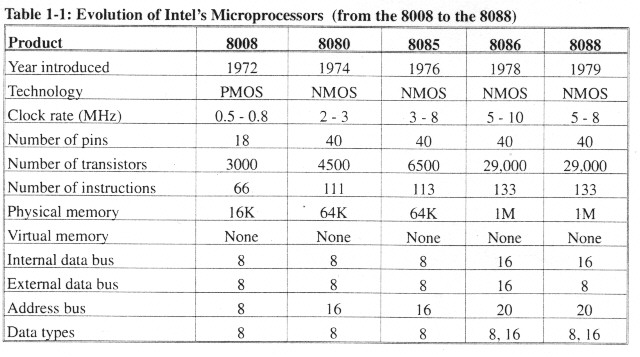

• Ref#03 Evolution of 8008 ~ 8088  (LT003)

.
• Ref#04 Evolution of 8086 ~ Pentium  (LT004)

.

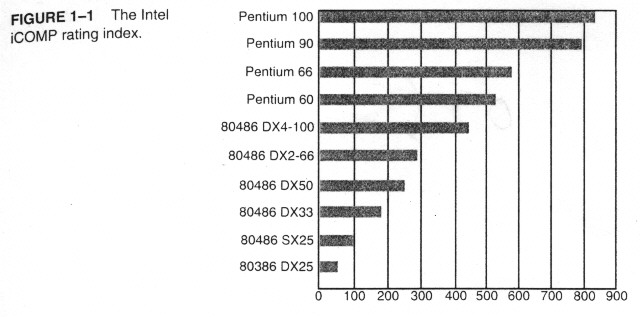

• Ref#05 Rating Index  (LT005)

.
• Ref#06 Register Set  (F2-01)

.

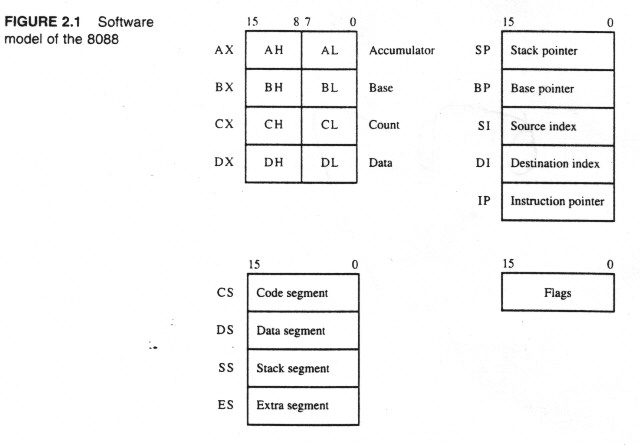

• Ref#07 S/W Mode 0f 8088  (LT007)

.
• Ref#08 8088 Architecture  (LT008)

.
• Ref#09 80386 Block Diagram  (LT009)

.
• Ref#10 80386 Architecture  (LT010)

.
• Ref#11 80486 Architecture  (LT011)

.
• Ref#12 Inside the Pentium  (LT012)

.
• Ref#13 Codes for Flag Register  (LT013)

.

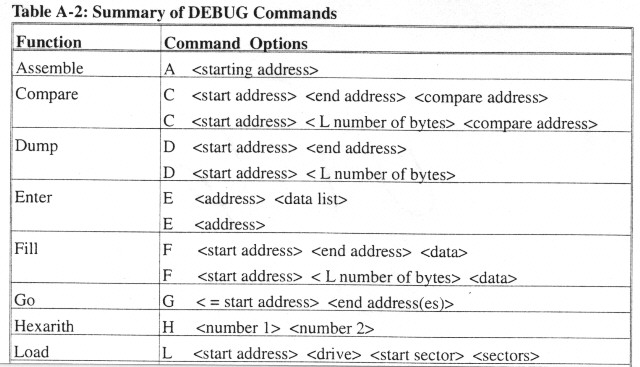

• Ref#14 DEBUG Command  (LT014)

.

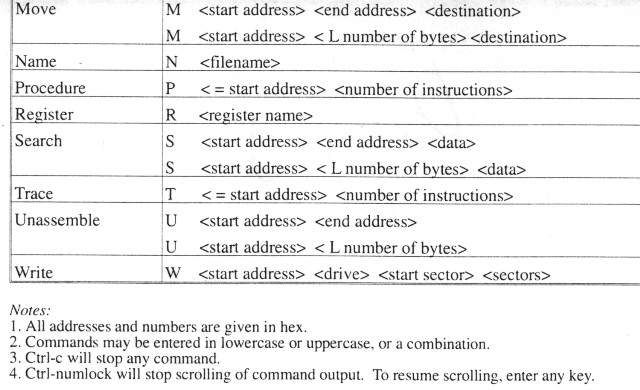

• Ref#15 DEBUG Command (continue)  (LT015)
