BJT : Bipolar Junction Transistors

---

1. Objectives

• To understandBipolar Junction Transistors
• To familiar SPICE simulation tool.

---

2. Pre-Discussion

•  Current flow in a PNP transistor

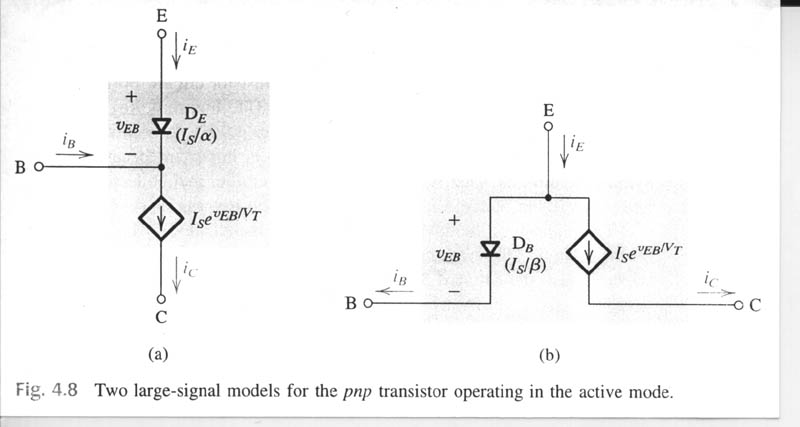

• Two large-signal models for the PNP transistor

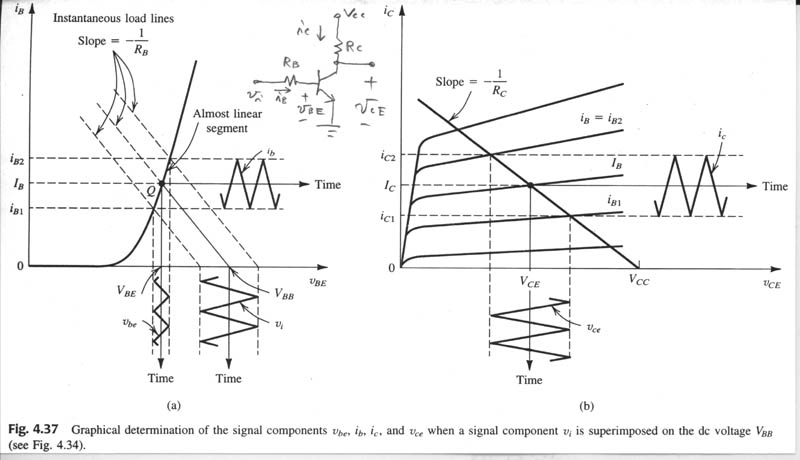

• Graphical determination of the signal components

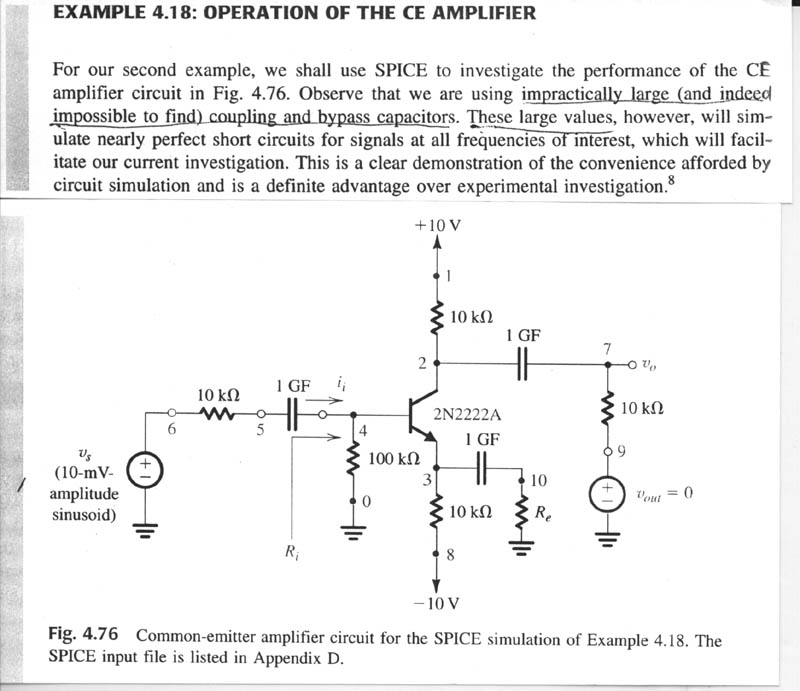

• Operation of the CE amplifier

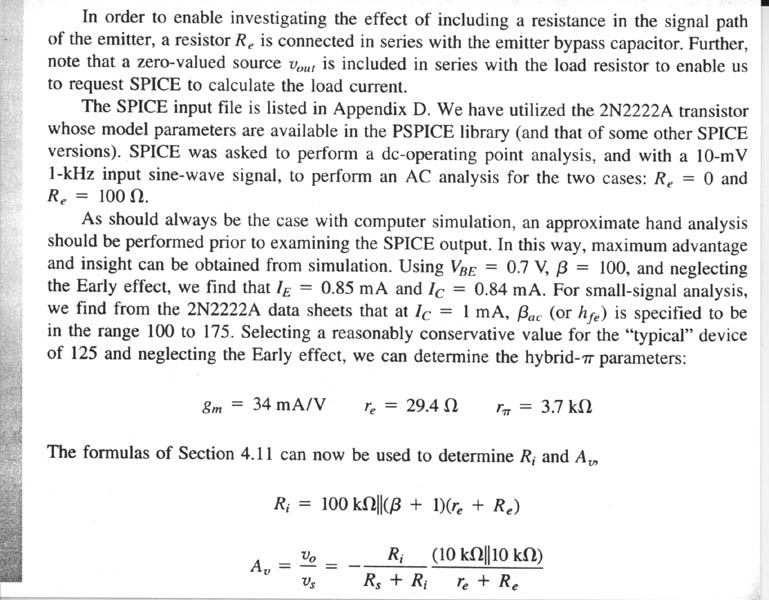

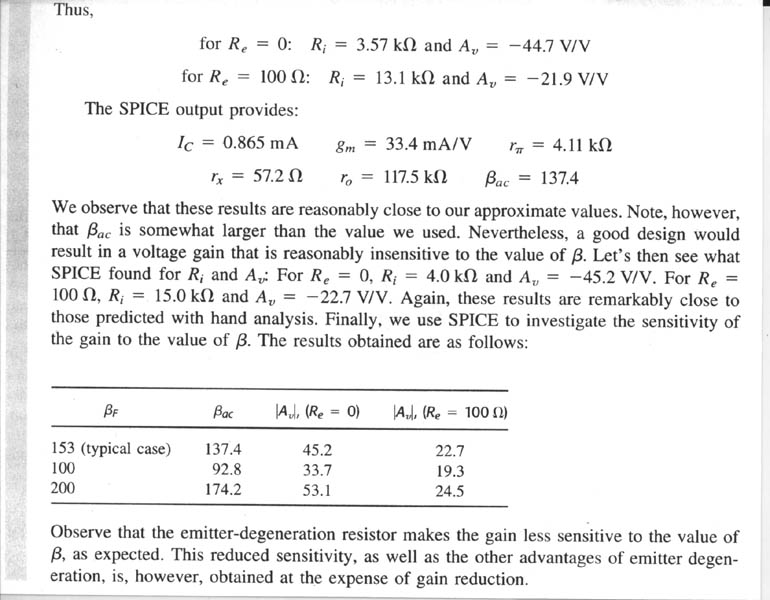

| CE amplifier circuit | Determine Ri |  Determine Av |
• Simulation by [SPICE]

Upload [circuit] and [probe wave] (2 files, don't include Dir)
Assign Re resistor with [ID + 1000]

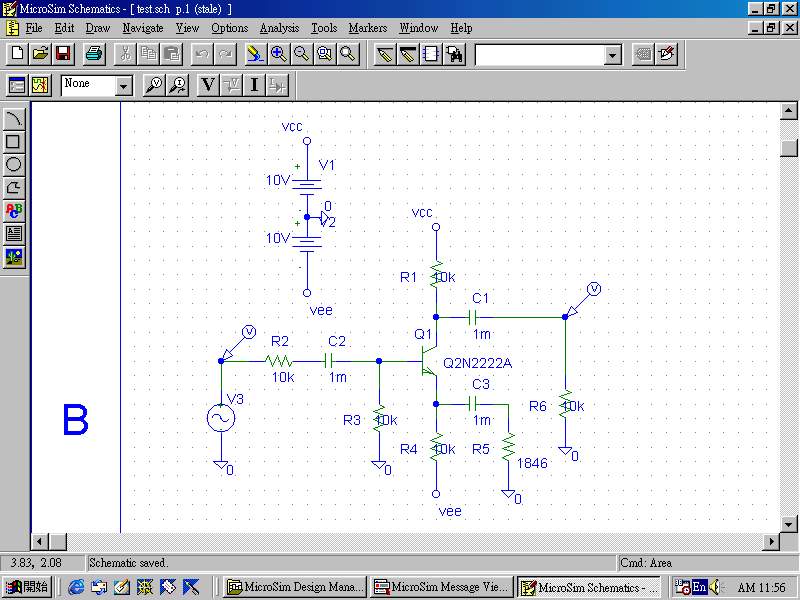

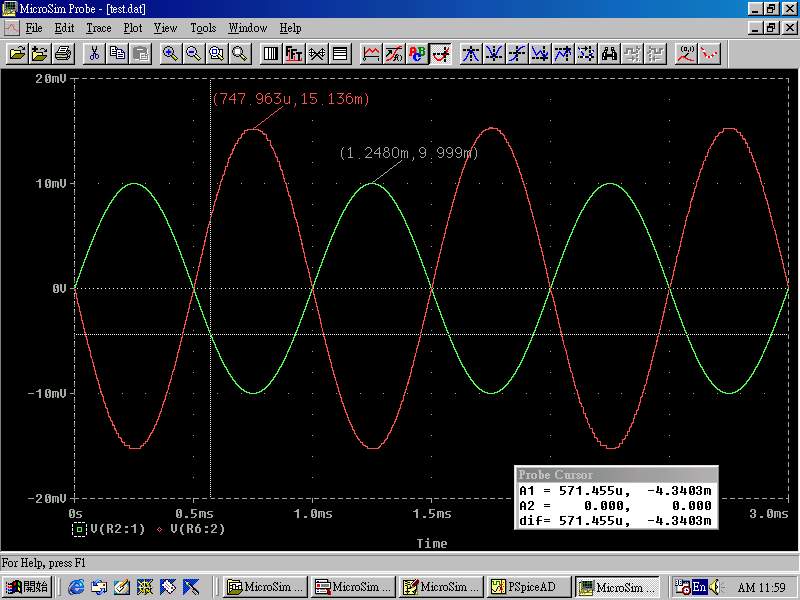

e.g.  |  s123BJTckt.jpg  |  s123BJTprobe.jpg  |
        (create by u861846 Ĭ¸q®p)

---

3. Experimental

• Measure with oscilloscope ( Skip )

---

4. Project

• Measure with oscilloscope

---

5. Post-Discussion

• Calculate Av with SPICE simulation's data.

---
